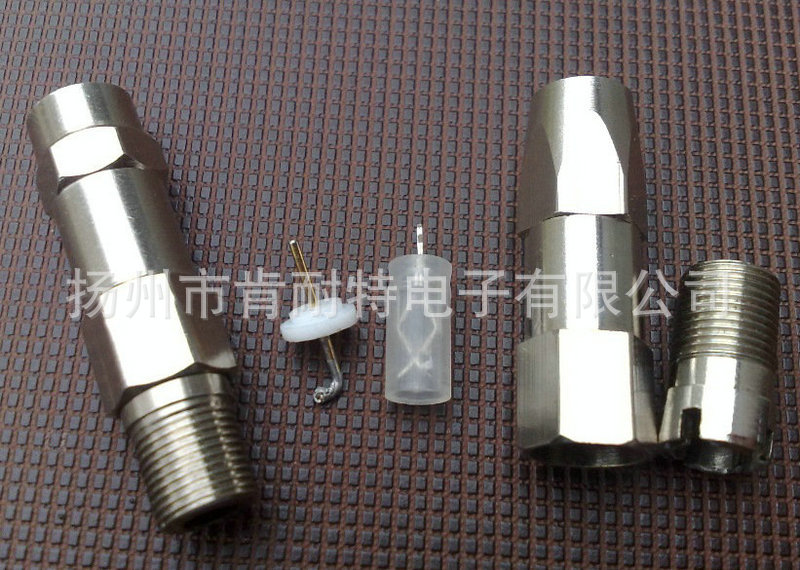

品名（NAME）：高通滤波器外壳（含配件除线路板）

材质（Material）：铜

挤压长度（Range）：-

螺母尺寸（Nut）：HEX11/12

螺纹类别（Interface）：Standard3/8-32UNEF/M10x0.75

电镀（Plating）：镍

阻抗（Impedance）：75/50Ohms

频率范围（Bandwidth）：DC-1GHz

插损（Insertion Loss）：<0.1dB@1GHz

回损（Return Loss）：>-25dB@1GHz

抗拉强度（Cable Rentention）：>40-Ibs

温度范围（Temperature Range）：-40℃~+80℃

安装（Installation）：

针对电缆（Cable）：

实用型专利号（Practicabillity design Patent NO.）-

产品可来图加工，电镀可灵活选择，产品美观！

产品描述：

Connectors series features
● One-piece compression design, eliminates lost or mismatched components
● Provides 360-degrees contact to the cable, providing excellent RF shielding integrity, complete seal to the cable jacket to lock out moisture
● Meets SCTE IPS TP 013 moisture migration test
● Free spinning nut, 11mm hexagon (7/16-inch compatible)
● Up to 3GHz with excellent overall performance
● Moisture-proof through durability design and implementation of UV ozone-resistant EPDM o-rings
● Wide hexagon nut for ease of tightening
● Pull strength much better than cable specification
● RoHS Compliant
● All facilities meet ISO 9001 standards
